Condenser Boundary Microphone - ES945

Condenser Microphone

Condenser Boundary Microphone - ES945

Model: ES945
Manufacturer: audio-technica

Audio-Technica ES945

Audio-Technica ES945

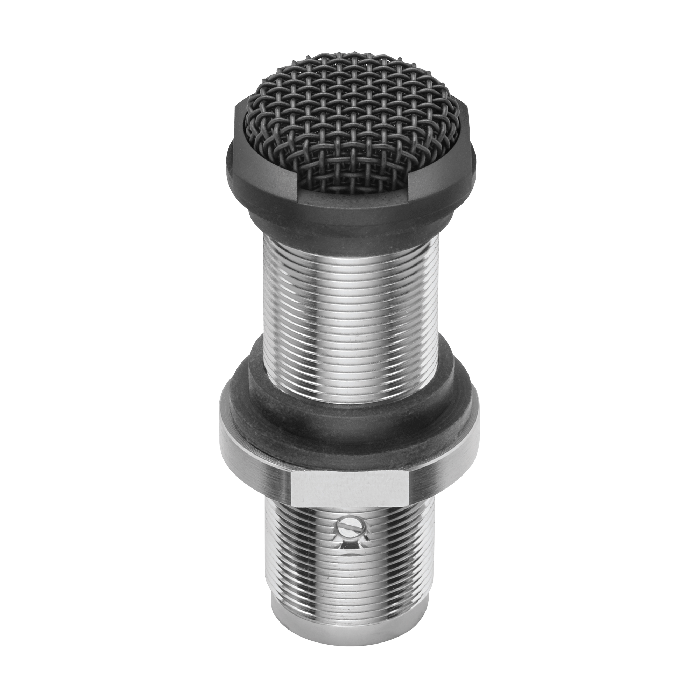

Omnidirectional Condenser Boundary Microphone

The ES945 has been discontinued and replaced with the updated ES945O/XLR microphone.

This low-profile phantom-powered omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording and teleconferencing in table-, ceiling-, or panel-mount applications. Equipped with UniGuard® RFI-shielding innovations. The ES945 is available in black and white. RoHS compliant. Contractor-exclusive line.

Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing

• Low-profile element provides uniform omnidirectional polar pattern with 360º acceptance angle
• Mounts unobtrusively in table-tops, ceilings and wall panels
• Self-contained power module with XLRM-type output connector
• Rugged all-metal case with a two-layer steel mesh grille
• Isolators provide mechanical dampening of mounting-surface vibration
• Requires 11V to 52V DC phantom power
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)

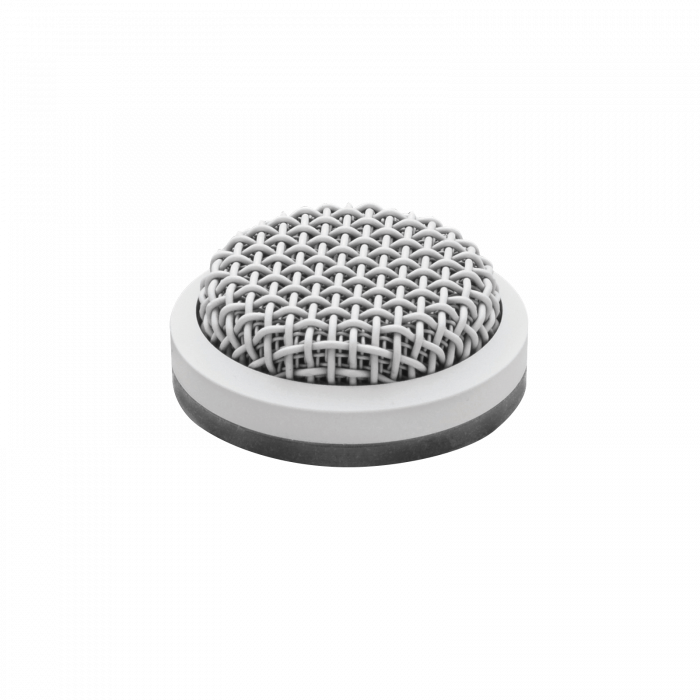

• Available in two colors: black (ES945) and white (ES945W)
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 40-18,000 Hz
• Open Circuit Sensitivity: -42 dB (7.9 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 142 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: 112 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 64 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Weight: 63 g (2.2 oz)
• Dimensions: 69.0 mm (2.72") long, 28.0 mm (1.10") diameter
• Output Connector: Integral 3-pin XLRM-type
• Accessories Included: One pair isolators

Audio-Technica ES945
Omnidirectional Condenser Boundary Microphone
